Item	Parameters
Surface	Clean and flatness
Dimensional Tolerance(mm)	±1
AngleCut Tolerance(mm)	±1
Diagonal Difference(mm)	≤1.2
Thickness Tolerance(mm)	±10%

◆Laminating Condition:

Laminating Unit	Temp(℃)	Pressure(MPa)	Time (min)
Heat Laminating	110~130	≥8	20
Cool Laminating	≤40	≥8	20

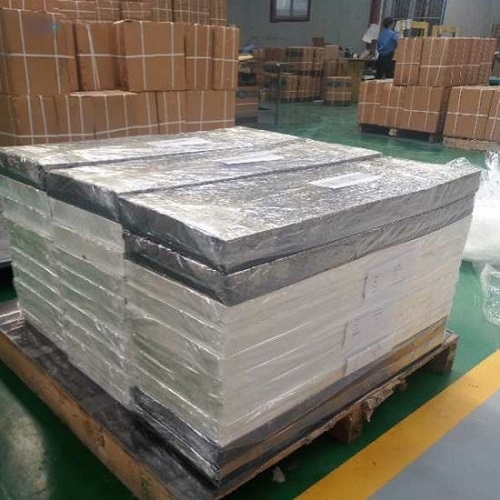

◆Packing:
Outer：Carton Inner：PE bag
◆Storage:
Keep the package sealed and moisture-proof, room temperature between 5~30℃.
Keep horizontally, avoid oppressing heavily and direct sunlight.
Stacking height should not exceed one meter.
Shelf life: One Year.

---

COATED OVERLAY

◆Brief Introduction:
SURYA KIRAN PVC Coated Overlay is suitable for laminating with conventional ink and UV ink. It could reach excellent peel strength by using Water Based Laminating Varnish. It provides superior aging resistance performance to other similar products, no color change and deformation after lamination. Laserable Coated Overlay is also offered.

◆Characteristics:
●　Suitable for conventional ink and UV ink, excellent peel strength even with pearl ,gold ,silver and dark color inks.
●　Keep the fluorescent anti-forgery mark clearly.
●　Non-Sticky and easy for magnetic stripe tape-laying.
●　Abrasion resistant , prolong the life of cards.
●　Environment friendly, no solvent or gas discharged.

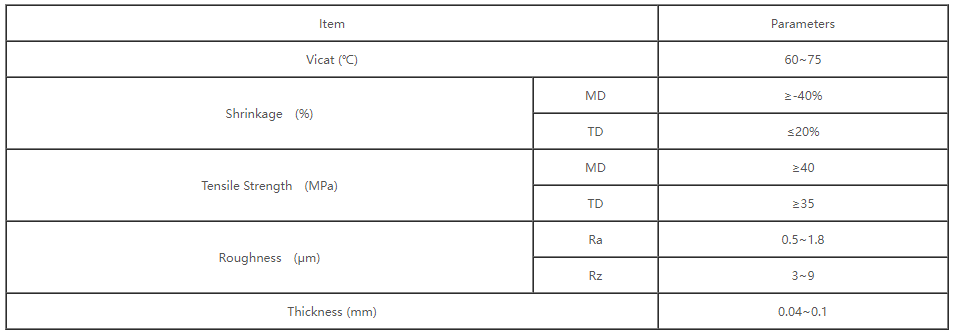

◆Technical Parameters:

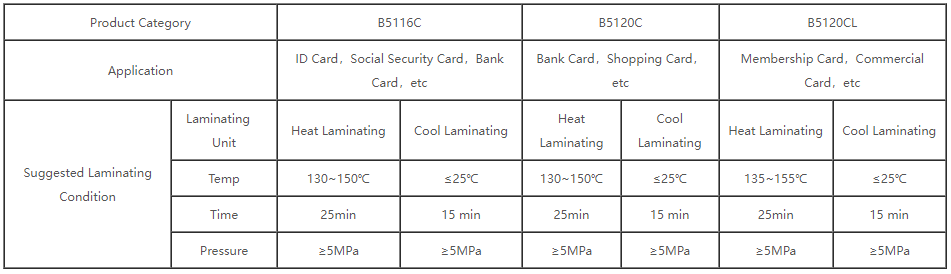

◆Product Category and Laminating Condition:

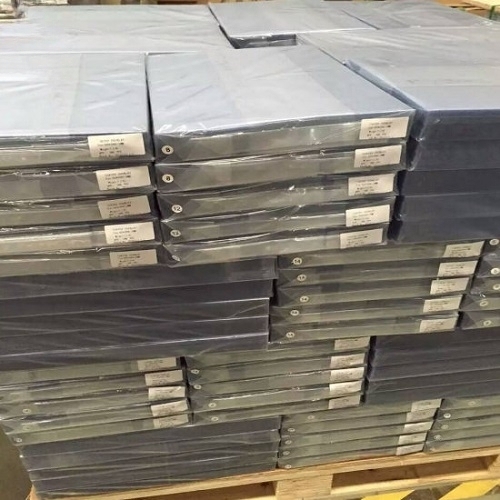

◆Packing:
Outside：Carton Inside：PE bag

◆Storage:
Keep the package sealed and moisture-proof ,room temperature between 5~30℃.
Stacking height should not exceed one meter.
Keep horizontally, avoid oppressing heavily and direct sunlight.
Shelf life: Two year.
